Gold Round Mill

The wet pan mill is mainly used for the beneficiation of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, and other ore.

Share on facebook
Share on twitter
Share on linkedin

INTRODUCTION

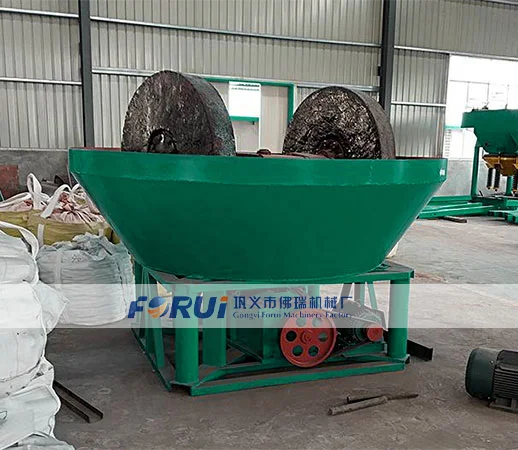

Wet Pan Mill
Wet Pan Mill

The wet pan mill is mainly used for the beneficiation of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, and other ore. It is also called a gold round mill. Because of the small investment, quick results, and high benefits of using wet pan mills, wet mills have become the ideal equipment for most enterprises.

TECHNICAL PARAMETERS OF WET PAN MILL



Model Specification (mm) Feed Size(mm) Speedr/min Power(kw)
1600A 1600*400*200*500±20 <25 10~12 30
1500A 1500*350*150*460±20 <25 10~12 22
1500B 1500*300*150*420±20 <25 10~12 18.5
1400A 1400*350*150*350±20 <25 10~12 15
1400B 1400*300*150*350±20 <25 10~12 15
1300A 1300*250*150*350±20 <25 10~12 11
1300B 1300*200*150*350±20 <25 10~12 11
1200A 1200*200*80*270±20 <25 12.5 7.5
1200B 1200*180*80*250±20 <25 12.5 7.5
1100B 1100*180*80*250±20 <25 12 5.5

PRINCIPLE OF GOLD ROUND MILL



Wet Pan Mill
Wet Pan Mill

The beneficiation method and process of the wet pan mill in gold ore dressing:
1. After installation and debugging, add about 5 kg of mercury to the bottom of the tank of the wet pan mill and start to work normally.
2. Collect the gold dust once for each shift. Add 1 kg of mercury in the shift to collect the ground bottom of the gold dust and mercury. Take the mercury and put it in an instrument of gold, and wring it out with red cloth of relatively high density. Open the red cloth inside the remaining is the gold dust.
3. Each shift starts with one kilogram of mercury. Stick a mercury plate on the back of the placer gold mining carpet and you can collect the gold.

FEATURES OF GOLD ROUND MILL



Wet Pan Mill
Wet Pan Mill

1. Small investment and high output.
2. High efficiency and energy saving.
3. Easy to install and maintain.
4. The roller is wear-resistant.

Gold round mill mainly through repeatedly stirring, rolling, crushing, rolling raw materials. Thus the mineral processing products meet the water balance, the ratio of uniform, low gas content, high molding rate, and molding quality requirements.

The round mill has the features of high efficiency and energy saving, high output, no loss of mineral powder, and full utilization of effective resources.

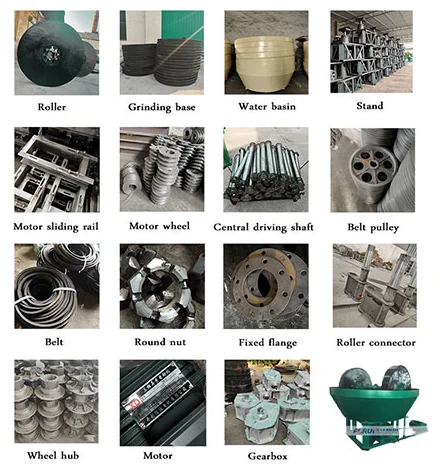

STRUCTURE OF WET PAN MILL



Structure of Gold Round Mill
Structure of Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill

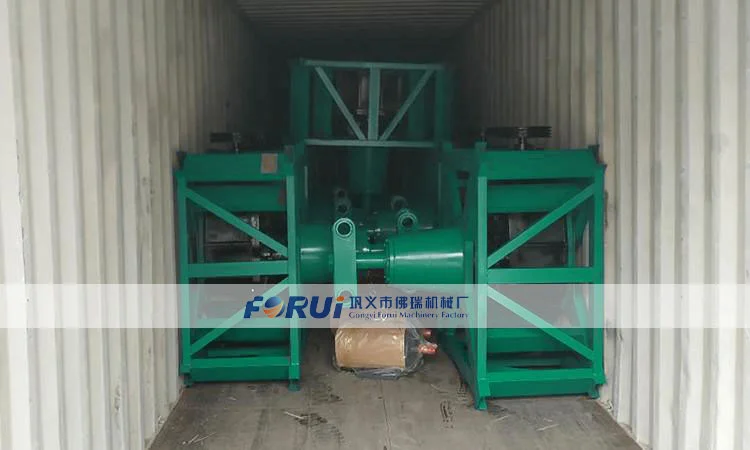

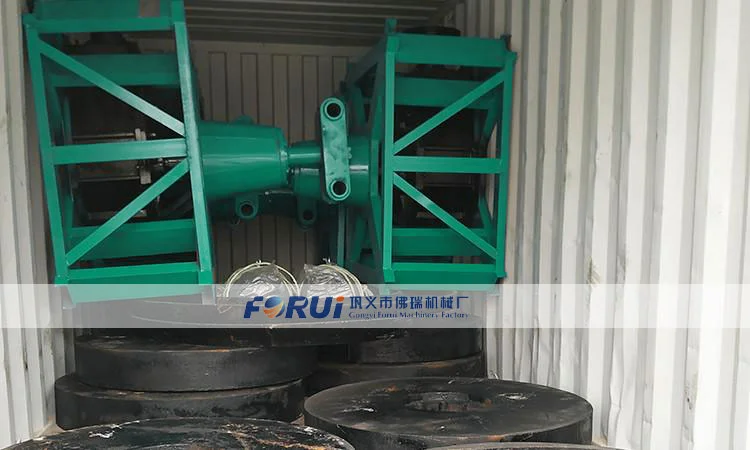

SHIPMENT



Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill
Wet Pan Mill

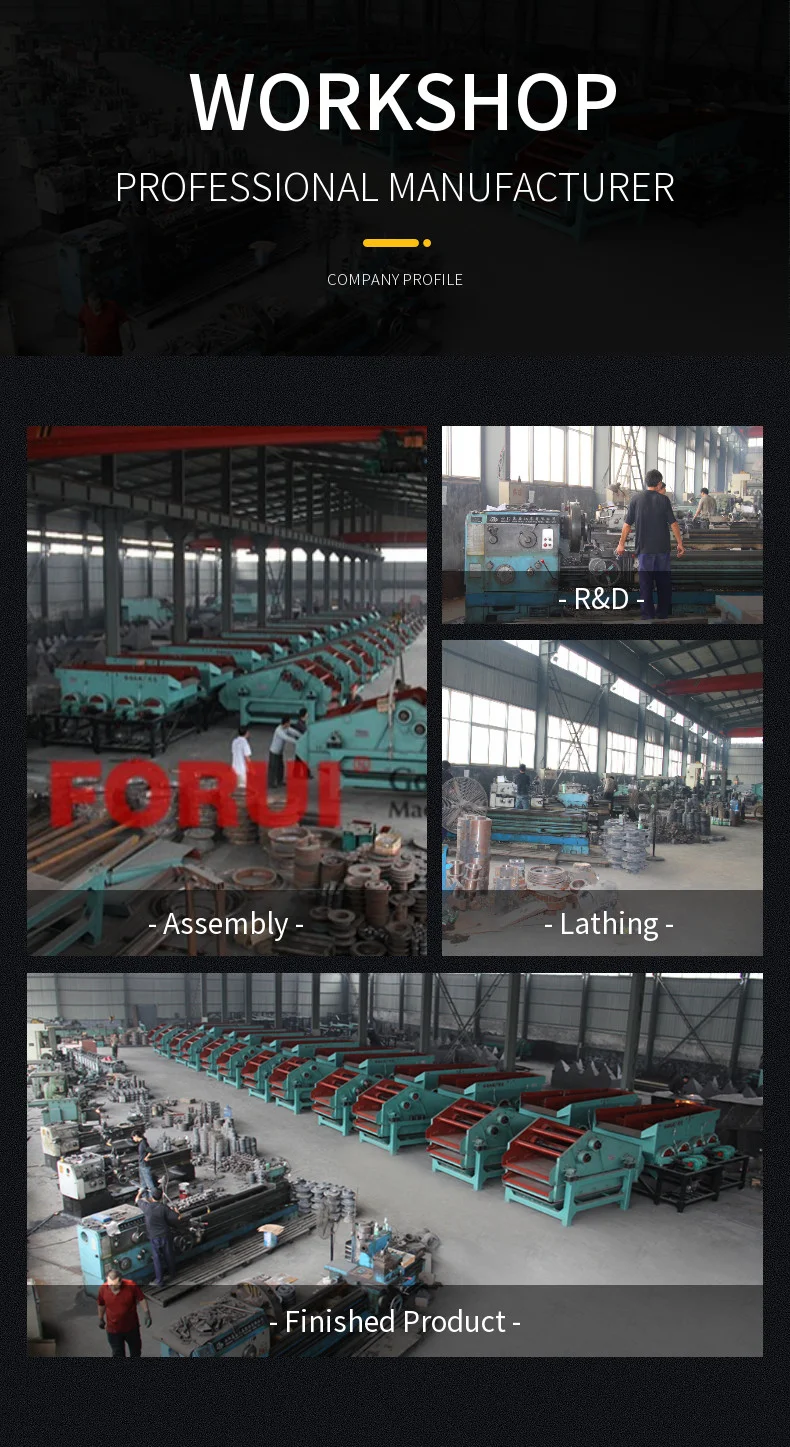

Gongyi Forui Machinery Factory, founded in 1986. We are one of the leading suppliers of beneficiation pieces of equipment in Asia. Don’t hesitate to Contact Us, if you have any questions about beneficiation. And welcome to visit our company. Gongyi Forui Machinery Factory is dedicated to serving you!

Weight 14500 kg
Dimensions 160 cm
Model

1600A

Feed Size (mm)

< 30

Capacity (t/h)

2 ~ 2.5

Power (kw)

30
