PLACER GOLD WASHING PLANT

Gold Washing Trommel is widely used in various difficult to wash large ore, the washing machine is divided into cylinder type and cylinder sieve type.

Share on facebook
Share on twitter
Share on linkedin

Introduction

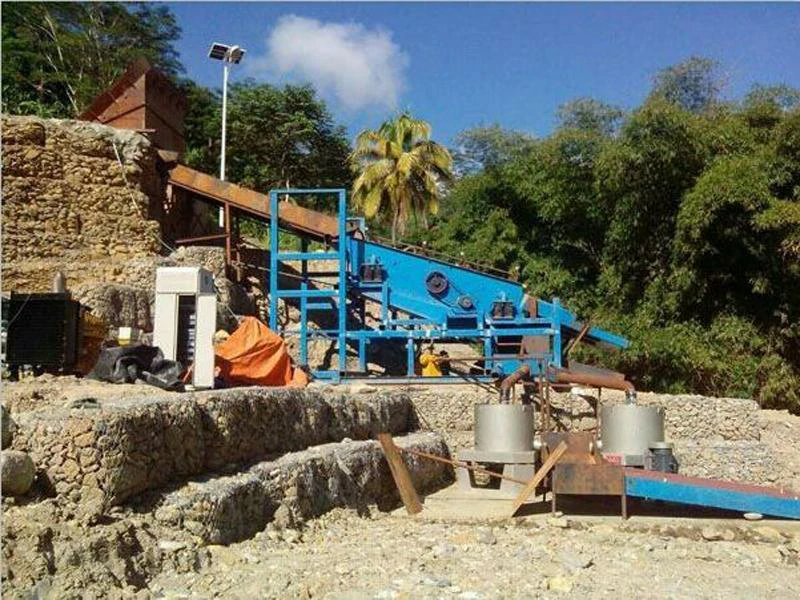

Placer gold beneficiation production line mainly includes the following 4 work processes:Feeding process,Washing and screening process,Rough selection process,Selection process and Dewatering process.

Processes

1. Placer gold beneficiation production line mainly includes the following 4 work processes

1.1 Feeding process

A feed hopper equipped with a grid screen can block large stones out, and a spray pipe lined with the hopper makes the mineral muddy.

1.2. Washing and screening process

The clay scrubber uses grinding teeth to break up and wash away the clay, dissociating the clay and the placer gold particles.

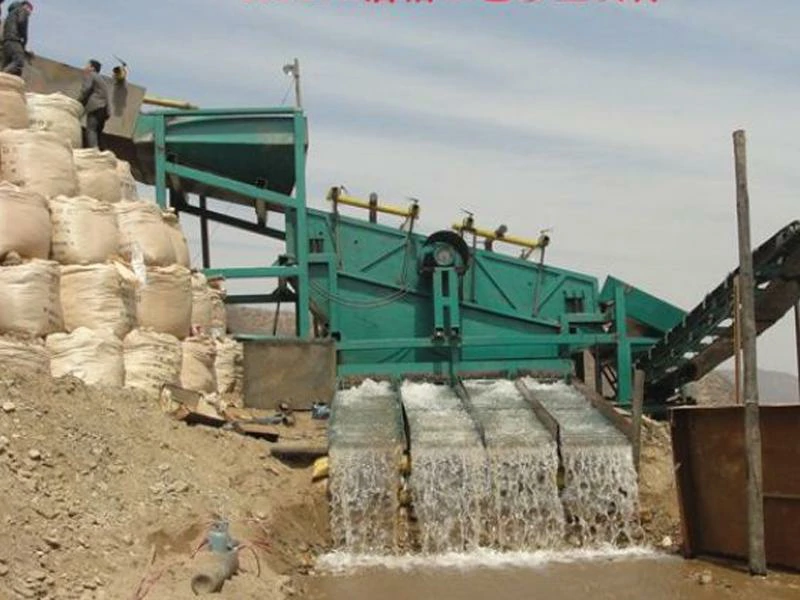

Heavy-duty placer gold trommel is used for washing and screening of placer gold ore.

1.3 Rough selection process

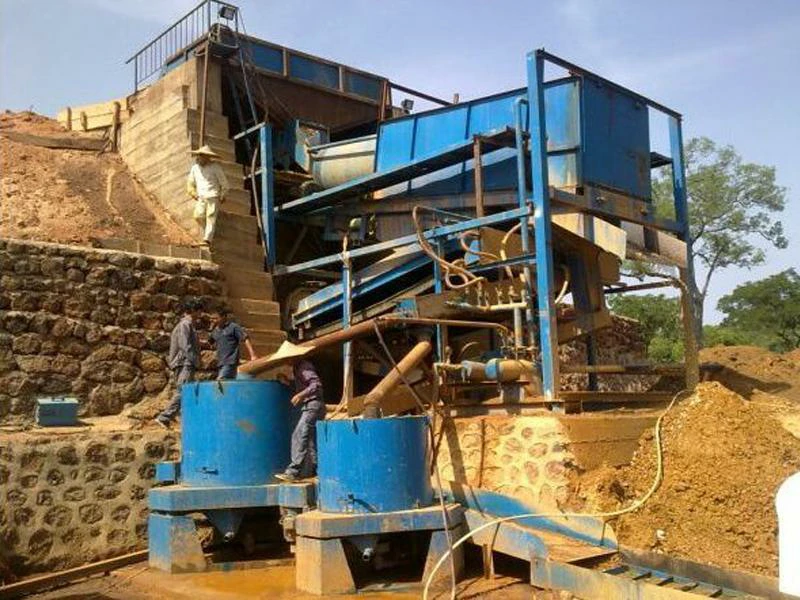

After washing and screening, the gold ore is divided into two grades, and enters the placer gold beneficiation chute and centrifuge for ore beneficiation to obtain coarse concentrate.

1.4 Selection process

The coarse concentrate obtained by the roughing process is then selected by a shaker, and finally the concentrate is obtained.

2. The entire production line is also equipped with the following operating systems

2.1 Water supply system

Provide multiple high-power submersible pumps, including required water pipes, valves and other accessories.

2.2 Control system

The control cabinet is equipped with an operation panel that can control each beneficiation equipment and the entire beneficiation system, which can be operated by a single person, which is convenient and fast.

2.3 Power system

The power supply system provides various diesel generators, gasoline generators, gas generators, etc. provided by the famous brand Cummins brand and China Weichai brand.

2.4 Mobile system

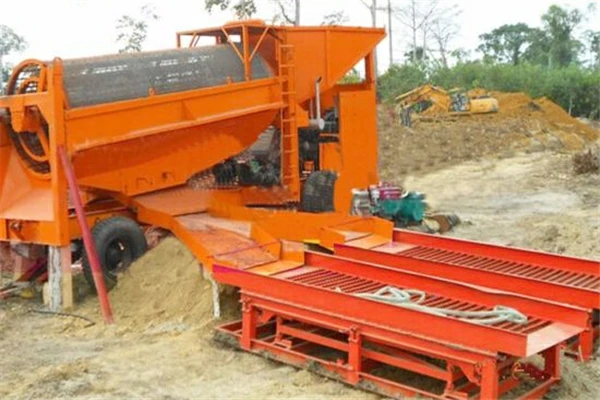

If mobile operations are required, a mobile base with heavy wheels and a towing mechanism is also provided, which eliminates installation and facilitates rapid transition.

Features

  1. Large processing capacity, 100-150 tons per hour.
  2. High recovery rate, specially designed according to the customer’s mining situation to ensure the highest recovery rate.
  3. Facilitate transition. According to customer needs, the whole set of equipment can be equipped with movable wheels and towing mechanism to facilitate transition.
  4. Low cost, easy to install, operate and maintain.
  5. Lifetime technical support.

Gongyi Forui machinery factory,  founded in 1986. We are one of the leading suppliers of beneficiation equipments in Asia. Don’t hesitate to Contact Us, if you have any question of beneficiation. And welcome to visit our company. Gongyi Forui Machinery Factory dedicated to serve you!

Weight 4000 kg
Dimensions 300 × 100 × 100 cm
Price

From $5,000.00

Model

YTXK1030

Feed size (mm)

0-80

Handling capacity (t/h)

20-30

Power (kw)

15
