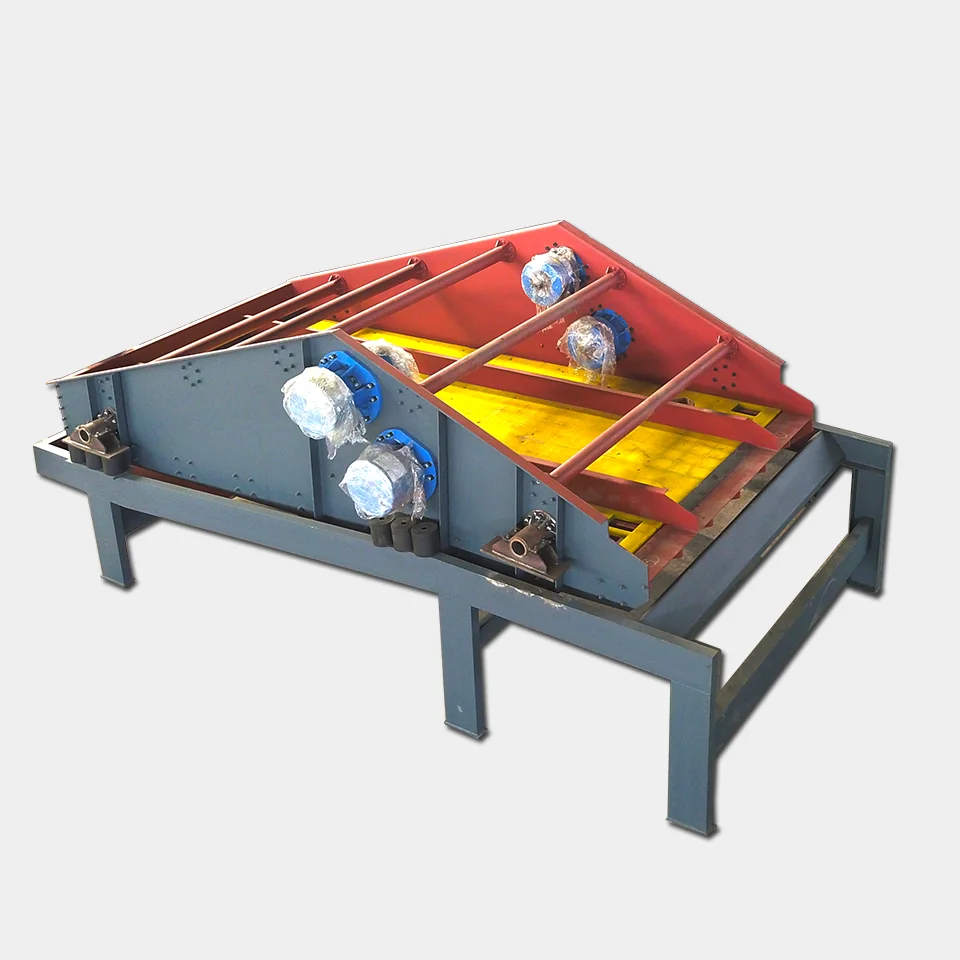

Linear Vibrating Screen

Mining vibrating screen is a new type of vibrating screen with circular vibration, multi-layer number, strong, durable, and high efficiency.

SKU 100-1-4 Categories , Tag
Share on facebook
Share on twitter
Share on linkedin

Introduction

Vibrator Screen for ore mineral sand
Vibrator Screen for ore mineral sand

Mining vibrating screen is a new type of vibrating screen with circular vibration, multi-layer number and high efficiency. It is mainly used in the grading operation of gold, mine, building materials, chemical industry, metallurgy, mineral dressing and so on. It has strong and durable and other characteristics.

The mining vibrating screen is a vibrating screen machine which uses a vibrating device with eccentric block to make the sieve box vibrate. Its running track is generally circular or approximately circular. It has the advantages of simple structure, low manufacturing cost and less maintenance workload, so it is widely used in the screening of mineral processing industry, such as gold dressing.

Principle of Mining Vibrating Screen

Scheelite Concentrator in Nigeria
Vibrator Screen Case – Scheelite Concentrator in Nigeria

The mining  vibrating screen is characterized by a straight line between the axial line of the vibrator and the center line of the pulley, so both the pulley and the axis of the vibrator participate in the vibration. The shaft with eccentric block is mounted on the side wall of the sieve box through bearing and bearing seat. The stiffness of the vibration isolation spring is small, so that the sieve machine usually works in the far super resonance state.

The new vibrating screen produced by Frey Machinery Factory in Gongyi City adopts soft connection transmission mode and does not use triangle belt, which effectively improves the normal operation time of the equipment and reduces the maintenance rate.

Features of Mining Vibrating Screen

  1. structure is strong and durable, long service life.
  2. technology is mature and the failure rate is low.
  3. screening efficiency is high, production capacity is large.
  4. structure is simple, easy to replace screen.

Gongyi Forui machinery factory,  founded in 1986. We are one of the leading suppliers of beneficiation equipments in Asia. Don’t hesitate to Contact Us, if you have any question of beneficiation. And welcome to visit our company. Gongyi Forui Machinery Factory dedicated to serve you!

Weight 3345 kg
Dimensions 380 × 205 × 220 cm
Model

2ZSM1230

Feed Size (mm)

0-200

Capacity (t/h)

10-50

Power (kw)

5.5×2
